Woven Mesh

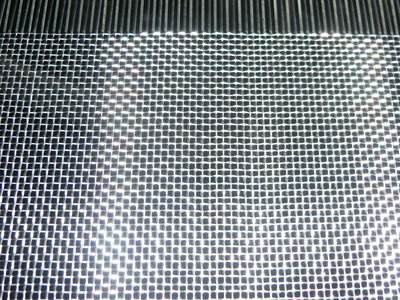

Stainless Steel Woven Tensile Bolting Cloth
Stainless Steel Bolting Cloth is woven of extremely smooth, highly durable wire to speed up the bolting action and increase the capacity of screening machines.
Tensile Bolting Cloth is ideal for industrial uses where a combination of high capacity and strength is required.
| Meshes Per Linear Inch | Opening | Wire Diameter | Open Area | ||
| Inches | M.M. | Inches | M.M. | ||
| 14 Mesh | 0.0624" | 1.580 | 0.009" | 0.229 | 76.4% |
| 16 Mesh | 0.0535" | 1.359 | 0.009" | 0.229 | 73.3% |
| 18 Mesh | 0.0466" | 1.184 | 0.009" | 0.229 | 70.2% |
| 20 Mesh | 0.0410" | 1.041 | 0.009" | 0.229 | 67.2% |
| 22 Mesh | 0.0380" | 0.965 | 0.0075" | 0.191 | 69.7% |
| 24 Mesh | 0.0342" | 0.869 | 0.0075" | 0.191 | 67.2% |
| 26 Mesh | 0.0310" | 0.787 | 0.0075" | 0.191 | 64.8% |
| 28 Mesh | 0.0282" | 0.716 | 0.0075" | 0.191 | 62.4% |
| 30 Mesh | 0.0268" | 0.681 | 0.0065" | 0.165 | 64.8% |
| 32 Mesh | 0.0248" | 0.630 | 0.0065" | 0.165 | 62.7% |
| 34 Mesh | 0.0229" | 0.582 | 0.0065" | 0.165 | 60.7% |
| 36 Mesh | 0.0213" | 0.541 | 0.0065" | 0.165 | 58.7% |
| 38 Mesh | 0.0198" | 0.503 | 0.0065" | 0.165 | 56.7% |
| 40 Mesh | 0.0185" | 0.470 | 0.0065" | 0.165 | 54.8% |
| 42 Mesh | 0.0183" | 0.465 | 0.0055" | 0.140 | 59.1% |
| 43 Mesh | 0.0183" | 0.465 | 0.0050" | 0.127 | 61.8% |
| 44 Mesh | 0.0172" | 0.437 | 0.0055" | 0.140 | 57.5% |
| 46 Mesh | 0.0162" | 0.412 | 0.0055" | 0.140 | 55.8% |
| 46 Mesh | 0.0172" | 0.437 | 0.0045" | 0.114 | 62.9% |
| 48 Mesh | 0.0153" | 0.389 | 0.0055" | 0.140 | 54.2% |
| 48 Mesh | 0.0163" | 0.414 | 0.0045" | 0.114 | 61.5% |
| 50 Mesh | 0.0145" | 0.369 | 0.0055" | 0.140 | 52.5% |
| 50 Mesh | 0.0155" | 0.394 | 0.0045" | 0.114 | 60.1% |
| 54 Mesh | 0.0130" | 0.331 | 0.0055" | 0.140 | 49.4% |
| 54 Mesh | 0.0145" | 0.368 | 0.0040" | 0.102 | 61.5% |
| 56 Mesh | 0.0138" | 0.351 | 0.0040" | 0.102 | 60.2% |
| 58 Mesh | 0.0127" | 0.323 | 0.0045" | 0.114 | 54.6% |
| 58 Mesh | 0.0132" | 0.335 | 0.0040" | 0.102 | 59.0% |
| 60 Mesh | 0.0122" | 0.310 | 0.0045" | 0.114 | 53.3% |
| 60 Mesh | 0.0127" | 0.323 | 0.0040" | 0.102 | 57.8% |
| 62 Mesh | 0.0116" | 0.295 | 0.0045" | 0.114 | 52.0% |
| 62 Mesh | 0.1210" | 0.307 | 0.0040" | 0.102 | 56.5% |
| 64 Mesh | 0.0111" | 0.282 | 0.0045" | 0.114 | 50.7% |
| 66 Mesh | 0.0112" | 0.285 | 0.0040" | 0.102 | 54.2% |
| 70 Mesh | 0.0106" | 0.269 | 0.0037" | 0.094 | 54.9% |
| 72 Mesh | 0.0102" | 0.259 | 0.0037" | 0.094 | 53.8% |
| 74 Mesh | 0.0098" | 0.249 | 0.0037" | 0.094 | 52.7% |
| 76 Mesh | 0.0095" | 0.241 | 0.0037" | 0.094 | 51.7% |
| 78 Mesh | 0.0091" | 0.231 | 0.0037" | 0.094 | 50.6% |
| 80 Mesh | 0.0088" | 0.224 | 0.0037" | 0.094 | 49.6% |
| 84 Mesh | 0.0084" | 0.213 | 0.0035" | 0.089 | 49.8% |
| 88 Mesh | 0.0079" | 0.201 | 0.0035" | 0.089 | 47.9% |
| 94 Mesh | 0.0071" | 0.180 | 0.0035" | 0.089 | 45.0% |
| 105 Mesh | 0.0065" | 0.165 | 0.0030" | 0.076 | 46.9% |
| 120 Mesh | 0.0057" | 0.145 | 0.0026" | 0.066 | 47.3% |
| 130 Mesh | 0.0059" | 0.152 | 0.0017" | 0.043 | 60.7% |
| 135 Mesh | 0.0051" | 0.129 | 0.0023" | 0.058 | 47.4% |
| 145 Mesh | 0.0047" | 0.119 | 0.0022" | 0.056 | 46.4% |
| 160 Mesh | 0.0048" | 0.123 | 0.0014" | 0.035 | 60.2% |
| 165 Mesh | 0.0042" | 0.107 | 0.0019" | 0.048 | 47.1% |
| 200 Mesh | 0.0034" | 0.086 | 0.0016" | 0.041 | 46.2% |
| 230 Mesh | 0.0029" | 0.074 | 0.0014" | 0.036 | 46.0% |
| 270 Mesh | 0.0023" | 0.058 | 0.0014" | 0.036 | 38.6% |
| 325 Mesh | 0.0020" | 0.051 | 0.0011" | 0.028 | 41.3% |
