Wire Products

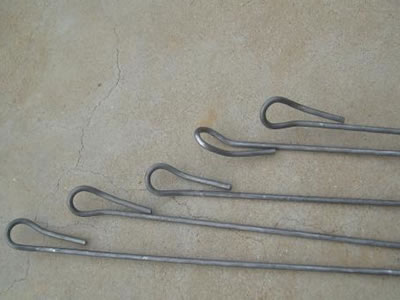

Quick Link Bale Ties
The dimensions of our bale ties are in accordance with the wishes of the customer. The range of diameters can vary from 2.00 mm to 4.00 mm. The length can vary from 150 mm to 4,000 mm.

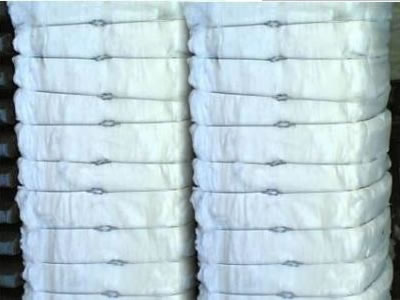

| . Main application: | Quick link bale ties for packaging all types of expanding fibrous material cotton, synthetic fibre, wool etc. Suitable for hand tying & automated systems. |
| . Steel wire quality: | High carbon steel acc. to DIN 17223 or as per clients specifications. |
| . Diameter range of steel wire: | 2,00 to 4,00 mm |
| . Surface: | Galvanized (hot-dip) or phosphated (uncoated) |
| . Zinc coat: | - Commercial acc. to DIN 1548 |
| - Class A acc. to ASTM B498M-83. | |
| . Wire tensile strength: | 1500 to 1770 N/mm² - or as per client request. |
| . Elongation: | at I = sd: 5 to 8% mini |
| . Breaking Load at loop: | 975 to 1050 kg mini |

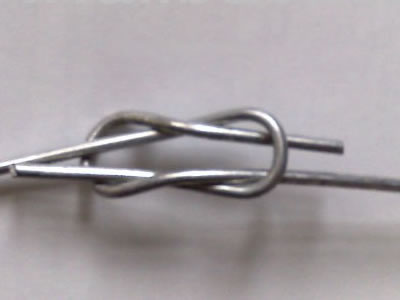

| . Quicklink shape & dimensions: | values as per clients specifications. |
| . Packaging: | Within lengthwise bundles. Each bundle contains 200 pcs, well wrapped & protected. |
