Metal Wire

Galvanized Wire

ELECTRO GALVANIZED  WIRE

HOT DIPPED GALVANIZED WIRE



LOW CARBON

HIGH CARBON

LOW CARBON

HIGH CARBON

WIRE DIAMETER

0.11-6.00MM

0.11-5.00MM

0.2-8.00MM

0.11-5.00MM

TENSILE STRENGTH

290-700MPA

1000-1870MPA

290-700MPA

1000-1870MPA

ZINC COATING

10-25G/M2

10-25G/M2

40-600G/M2

40-600G/M2

PRODUCTION CAPACITY

1000TONS/MONTH

1000TONS/MONTH

2000TONS/MONTH

1000TONS/MONTH

                                             PACKING FEATURE FOR DIFFERENT AREA

AMERICA

1KG/COIL,20COILS/CARTON  500-800KGS/COIL.REELS  SPOOLS. CARRIERS.  USA CANADA BRAZIL CHILE PERU

EUROPE

20KGS/COIL,30KGS/COIL. 100KGS/COIL.UK, FRANCE  ITALY  CYPRUS CZECH  SPAIN  POLAND

MIDDLE EAST

 1KG/COIL,10COILS/BUNDLE,5KGS/COIL.5COILS/BUNDLE .10KGS/COIL 20KGS/COIL. .DUBAI  OMAN  ISRAEL SAUDI ARABIA LEBANON

ASIA

25KGS/COIL.50KGS/COIL,100KGS/COIL.500-800KGS/COIL. INDIA THAILAND SINGAPORE MALAYSIA INDONESIA

AFRICA

16KGS/COIL,18KGS/COIL.20KGS/COIL. ANGOLA  SOUTH AFRICA  MADAGASCAR  ETHIOPIA UGANDA MALI LIBERIA

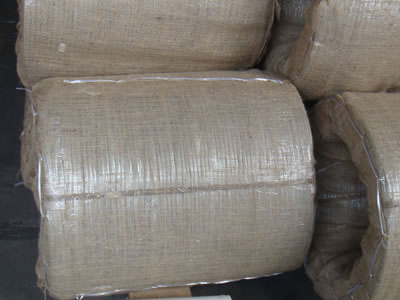

PACKING CAN BE SEVERAL METERS OR WEIGHT  LIKE 10METERS COIL,500G/COIL,1KG/COIL.TO 800KGS/COIL.GUNNY BAG OR WOVEN BAG

Galvanized WireGalvanized Wire

Galvanized WireGalvanized Wire

Galvanized WireGalvanized Wire


Galvanized wire
Wire
gauge size		             SWG BWG
Inch mm Inch mm
8 0.160 4.06 0.165 4.19
9 0.144 3.66 0.148 3.76
10 0.128 3.25 0.134 3.40
11 0.116 2.95 0.120 3.05
12 0.104 2.64 0.109 2.77
13 0.092 2.34 0.095 2.41
14 0.080 2.03 0.083 2.11
15 0.072 1.83 0.072 1.83
16 0.064 1.63 0.065 1.65
17 0.056 1.42 0.058 1.47
18 0.048 1.22 0.049 1.25
19 0.040 1.02 0.042 1.07
20 0.036 0.91 0.035 0.89
21 0.032 0.81 0.032 0.813
22 0.028 0.71 0.028 0.711
23 0.024 0.61 0.025 0.64
24 0.022 0.56 0.022 0.56
25 0.02 0.51 0.020 0.51
26 0.018 0.46 0.018 0.46
27 0.016 0.42 0.016 0.41
28 0.015 0.38 0.014 0.36
29 0.014 0.35 0.013 0.33
30 0.0124 0.32 0.012 0.31
31 0.012. 0.30 0.010 0.25
32 0.011 0.27 0.009 0.23
33 0.010 0.25 0.008 0.20
34 0.009 0.23 0.007 0.18
35 0.008 0.21 0.005 0.13
36 0.0076 0.19 0.004 0.10
37 0.07 0.17
38 0.006 0.15
