Sheet Mesh
Expanded Metal Mesh
Expanded metal mesh can be made from a range of materials, such as carbon steel, aluminum metal, stainless steel metal, nickel metal and so on. Expanded metal mesh are widely used as steel reinforcement materials in petroleum, chemical industry and building.
Surface treatment hot-dipped, electrol galvanized, pvc-coated.

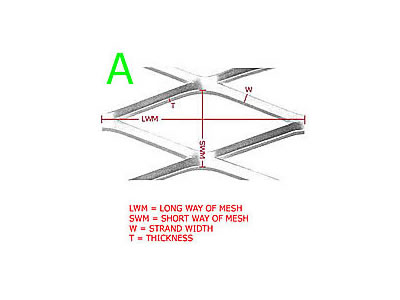

Type A Sizes:
Long way of mesh: 12.5-200mm
Short way of mesh: 5-80mm
Thickness: 0.5-8mm
Stand Width: 0.5mm-10mm
Expanded metal mesh at length from 1M-30M and width from 600-2400mm.
Packing: Pallet suilt for sea transport.

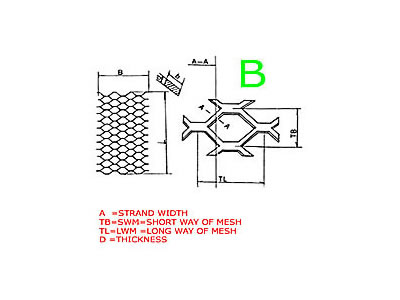

Type B Sizes:
Long way of mesh: mini 3mm
Short way of mesh: mini 2mm
Thickness: 0.03-1.5mm
Stand Width: 0.03mm-3mm
Expanded metal mesh at length from 1M-30M and width from max 1250mm
Packing: inner PE bag, outer carton.
| L.W.M. | S.W.M. | Strand Width | Strand Gauge | Approx. Kg/M2 |
| 6.05 | 3.38 | 0.8 | 0.5 | 2.1 |
| 10.24 | 5.84 | 0.8 | 0.5 | 1.2 |
| 10.24 | 5.84 | 1.2 | 0.9 | 3.2 |
| 14.27 | 5.84 | 1.2 | 0.9 | 3.2 |
| 19.05 | 7.42 | 1.2 | 0.9 | 3.4 |
| 5.8 | 3.5 | 0.8 | 0.6 | 2.1 |
| 19 | 7.4 | 1.7 | 1 | 3.4 |
| 30.5 | 11.7 | 2.4 | 1.6 | 4.9 |
| 30.5 | 11.7 | 2.4 | 1.2 | 3.8 |
| 38 | 16.5 | 2.2 | 1.6 | 3.4 |
| 50.8 | 22.5 | 2.5 | 2.5 | 4.4 |
| 50.8 | 22.5 | 3 | 1.6 | 3.4 |
| 50.8 | 22.5 | 3.9 | 3 | 8.1 |
| 50.8 | 22.5 | 3.1 | 3 | 6.5 |
| 76.2 | 33.9 | 3.5 | 3 | 4.9 |
| 85.7 | 40.6 | 3.2 | 3 | 3.7 |
| 101.6 | 50.8 | 5 | 3 | 4.7 |
| 101.6 | 50.8 | 3.4 | 3 | 3.1 |
| 114.3 | 39.3 | 4.6 | 3 | 5.4 |
| 200 | 75 | 6.3 | 3 | 3.6 |
