Woven Mesh

Stainless Steel Wire Mesh

Material for Stainless Steel Wire Mesh and Woven Wire Cloth : 304 304L 316 316L

Click to see the material grade and chemical composition:

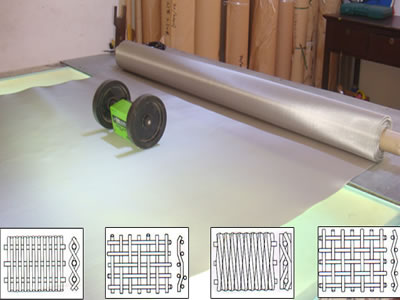

Weaving patterns involved: plain weave and twill weave.

Property of Stainless Steel Woven Wire Mesh and Wire Cloth: Acid resisting, alkali resisting, heat resisting, durable

Stainless Steel Woven Wire Mesh and Wire Cloth Application: Sifting and filtering in acid and alkali conditions. Slurry net in petroleum, sifting and screening mesh in chemical and chemical fiber industry, acid washing mesh in electric plating industry.
¨¨ Roll Width: 36", 40", 48", 60"
¨¨ Roll Length: 25Ft, 50Ft and 100Ft

Stainless Steel Wire Mesh Standard Grade made from plain weave or twill weave, materials are available in ANSI304 ANSI316 also other stainless steel 300 series and 400 series.

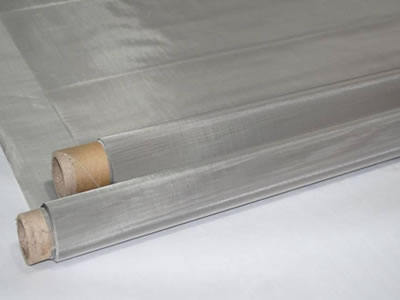

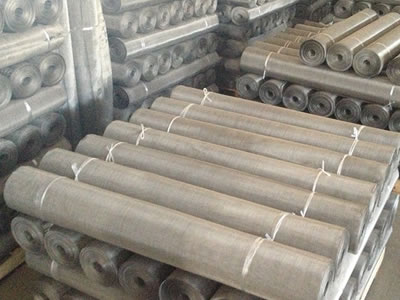

Stainless Steel Wire MeshStainless Steel Wire Mesh

Stainless Steel Wire MeshStainless Steel Wire Mesh

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch Diameter of  Wire Width of Opening Open
Area, %
Inches mm Inches mm
1 0.135 3.5 0.865 21.97 74.8
1 0.120 3.0 0.880 22.35 77.4
1 0.105 2.5 0.895 22.73 80.1
1 0.080 2.0 0.920 23.36 84.6
3/4" 0.120 3.0 0.630 16.00 70.5
3/4" 0.080 2.0 0.670 17.01 79.8
2 x 2 0.120 3.0 0.380 9.65 57.8
2 x 2 0.105 2.5 0.395 10.03 62.4
2 x 2 0.080 2.0 0.420 10.66 70.6
2 x 2 0.063 1.6 0.437 11.10 76.4
2 x 2 0.047 1.2 0.453 11.50 82.1
3 x 3 0.080 2.0 0.253 6.42 57.6
3 x 3 0.063 1.6 0.270 6.85 65.6
3 x 3 0.047 1.2 0.286 7.26 73.6
4 x 4 0.080 2.0 0.170 4.31 46.2
4 x 4 0.063 1.6 0.187 4.75 56.0
4 x 4 0.047 1.2 0.203 5.15 65.9
5 x 5 0.047 1.2 0.153 3.88 58.5
5 x 5 0.041 1.0 0.159 4.01 63.2
6 x 6 0.063 1.6 0.104 2.64 38.9
6 x 6 0.047 1.2 0.120 3.04 51.8
6 x 6 0.035 0.9 0.132 3.35 62.7
8 x 8 0.063 1.6 0.062 1.57 24.6
8 x 8 0.047 1.2 0.078 1.98 38.9
8 x 8 0.035 0.9 0.090 2.28 51.8
8 x 8 0.032 0.8 0.093 2.36 55.4
8 x 8 0.028 0.7 0.097 2.46 60.2
10 x 10 0.047 1.2 0.053 1.34 28.1
10 x 10 0.035 0.9 0.065 1.65 42.3
10 x 10 0.032 0.8 0.068 1.27 46.2
10 x 10 0.025 0.63 0.075 1.90 56.3
12 x 12 0.041 1.0 0.042 1.06 25.4
12 x 12 0.035 0.9 0.048 1.22 33.2
12 x 12 0.032 0.8 0.051 1.29 37.5
12 x 12 0.028 0.7 0.055 1.39 43.6
12 x 12 0.023 0.58 0.060 1.52 51.8
14 x 14 0.032 0.8 0.039 1.52 29.8
14 x 14 0.025 0.63 0.046 0.99 41.5
14 x 14 0.023 0.58 0.048 1.22 45.2
14 x 14 0.020 0.5 0.051 1.30 51.0
16 x 16 0.028 0.7 0.035 0.89 30.5
16 x 16 0.023 0.58 0.040 1.01 39.9
16 x 16 0.018 0.45 0.045 1.14 50.7
18 x 18 0.020 0.5 0.036 0.91 41.1
18 x 18 0.018 0.45 0.038 0.96 48.3
20 x 20 0.023 0.58 0.027 0.68 29.2
20 x 20 0.020 0.5 0.030 0.76 36.0
20 x 20 0.018 0.45 0.032 0.81 41.0
20 x 20 0.016 0.40 0.034 0.86 46.2
24 x 24 0.014 0.35 0.028 0.71 44.2
28 x 28 0.010 0.25 0.026 0.66 51.8
30 x 30 0.013 0.33 0.020 0.50 37.1
30 x 30 0.012 0.30 0.021 0.53 40.8
35 x 35 0.012 0.30 0.017' 0.43 33.8
35 x 35 0.010 0.25 0.019 0.48 42.4
40 x 40 0.014 0.35 0.011 0.28 19.3
40 x 40 0.012 0.30 0.013 0.33 27.4
40 x 40 0.010 0.25 0.015 0.38 36.0
40 x 40 0.0095 0.24 0.016 0.40 38.4
50 x 50 0.009 0.23 0.011 0.28 30.3
60 x 60 0.0075 0.19 0.009 0.22 30.5
70 x 70 0.0065 0.17 0.008 0.20 29.8
80 x 80 0.0070 0.18 0.006 0.15 19.4
80 x 80 0.0055 0.14 0.007 0.17 31.4
90 x 90 0.0055 0.14 0.006 0.15 25.4
100 x 100 0.0045 0.11 0.006 0.15 30.3
120 x 120 0.0040 0.10 0.0043 0.11 26.6
120 x 120 0.0037 0.09 0.005 0.12 30.7
150 x 150 0.0026 0.066 0.0041 0.10 37.4
165 x 165 0.0019 0.048 0.0041 0.10 44.0
180 x 180 0.0023 0.058 0.0032 0.08 33.5
180 x 180 0.0020 0.050 0.0035 0.09 41.1
200 x 200 0.0020 0.050 0.003 0.076 36.0
200 x 200 0.0016 0.040 0.0035 0.089 46.0
220 x 220 0.0019 0.048 0.0026 0.066 33.0
230 x 230 0.0014 0.035 0.0028 0.071 46.0
250 x 250 0.0016 0.040 0.0024 0.061 36.0
270 x 270 0.0014 0.040 0.0022 0.055 38.0
300 x 300 0.0012 0.030 0.0021 0.053 40.1
325 x 325 0.0014 0.040 0.0017 0.043 30.0
325 x 325 0.0011 0.028 0.0020 0.050 42.0
400 x 400 0.0010 0.025 0.0015 0.038 36.0
500 x 500 0.0010 0.025 0.0011 0.028 25.0
635 x 635 0.0009 0.022 0.0006 0.015 14.5
