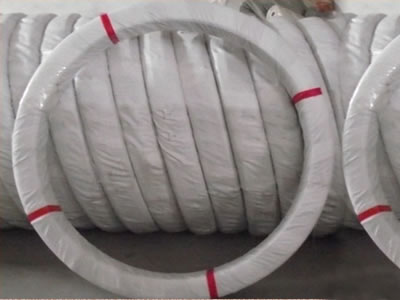

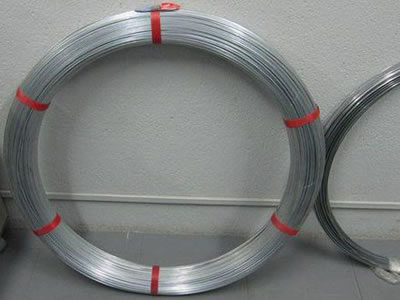

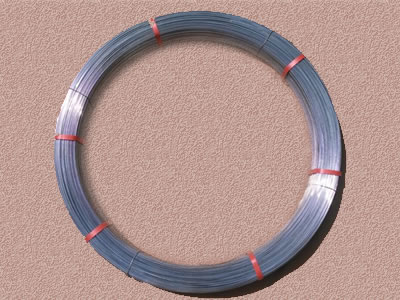

Oval Wire
Oval wire is made from high quality steel wire by redrawn equipment. they are widely used in SouthAmerica market.
Material: high carbon rod SAE1045,SAE1055,SAE1065 or low carbon Q195
Uses: mainly used for cattle frame to keep the cattle
Tensile Strength:600KGF-1550KGF
| Specification | Breaking Force | Zinc Coating | Diameter Tolerance | Length | Weight | |
| 17/15 | 3.0*2.4mm | 700kgf | Min.80g/m2 | ±0.06mm | 1000M | 45kg |
| 16/14 | 2.7*2.2mm | 600kgf | Min.80g/m2 | ±0.06mm | 1250M | 45kg |
| 15/13 | 2.4*2.0mm | 500kgf | Min.80g/m2 | ±0.06mm | 1500M | 45kg |
| 14/12 | 2.2*1.8mm | 400kgf | Min.80g/m2 | ±0.06mm | 1900M | 45kg |
| N°12 | 2.4*2.8mm | 500Mpa | Min.50g/m2 | ±0.06mm | 465M | 25kg |
| N°6 | 4.55*5.25 | 500Mpa | Min.50g/m2 | ±0.06mm | 170M | 25kg |
